TUOPUONE ESP32-S3 2.06inch AMOLED Touch Watch Development Board 32-bit LX7 Dual-core Processor 410×502 Pixels QSPI Interface Onboard Dual Digital Microphones Array No Battery
4.3 (80 items)
Limited Time SaleUS$23.03 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 228877759 | Release Date | 2026/05/31 | List Price | US$15.36 | Model Number | 228877759 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
IntroductionESP32-S3-Touch-AMOLED-2.06 is a high-performance, wearable watch-shaped development board. The product is based on the ESP32-S3R8 microcontroller, integrating a 2.06inch capacitive touch HD AMOLED screen, a six-axis sensor, RTC, an audio codec chip and power management and other functional modules. With a custom case, it looks and forms like a smart watch and is designed for prototyping and functional verification of wearable applications.FeaturesEquipped with ESP32-S3R8 high-performance Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequencyBuilt in 512KB SRAM and 384KB ROM, with onboard 8MB PSRAM and an external 32MB FlashAdopts Type-C interface to improve user convenience and device compatibilityHardware DescriptionOnboard 2.06inch high-definition capacitive touch AMOLED screen with a resolution of 410×502, 16.7M colors for clear color picturesEmbedded with CO5300 driver chip and FT3168 capacitive touch chip, communicating through QSPI and I2C interfaces respectively, minimizes required IO pinsOnboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gesture, step counting, etc.Onboard PCF85063 RTC chip connected to the battery via the AXP2101 for uninterrupted power supplyOnboard PWR and BOOT two side buttons with customizable functions, allowing for custom function developmentOnboard 3.7V MX1.25 lithium battery recharge/discharge headerBring out 1 x I2C port, 1 x UART port, and 1 x USB pad, which can be used for external device connection and debuggingOnboard TF card slot for extended storage and fast data transfer, flexible for data recording and media playback, simplifying circuit designThe AMOLED screen has the advantages of higher contrast, wider viewing angle, richer colors, faster response, thinner design, lower power consumption, and flexibility

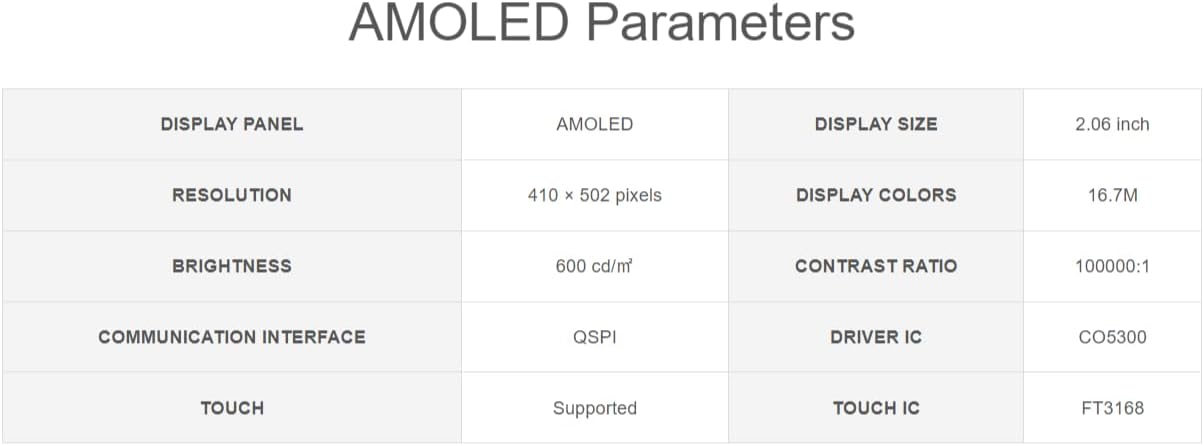

- Onboard 2.06inch high-definition capacitive touch AMOLED screen with a resolution of 410×502, 16.7M colors for clear color pictures
- Embedded with CO-5300 driver chip and FT3168 capacitive touch chip, communicating through QSPI and I2C interfaces respectively, minimizes required IO pins
- Onboard QMI-8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gesture, step counting, etc.
- Onboard PCF-85063 RTC chip connected to the battery via the AXP-2101 for uninterrupted power supply
- Adopts Type-C interface to improve user convenience and device compatibility
| ASIN | B0FLF614WZ |
|---|---|
| Brand | TUOPUONE |
| Screen Size | 2.06 Inches |
| Aspect Ratio | 1.27:1 |
| Display Type | LCD |
| Manufacturer | TUOPUONE |
| Model Number | ESP32-S3-Touch-AMOLED-2.06 |
| Refresh Rate | 60 Hz |
| Total Usb Ports | 1 |
| Has Color Screen | Yes |
| Additional Features | Touchscreen |
| Hardware Connectivity | USB Type C |
| Connectivity Technology | Ethernet |

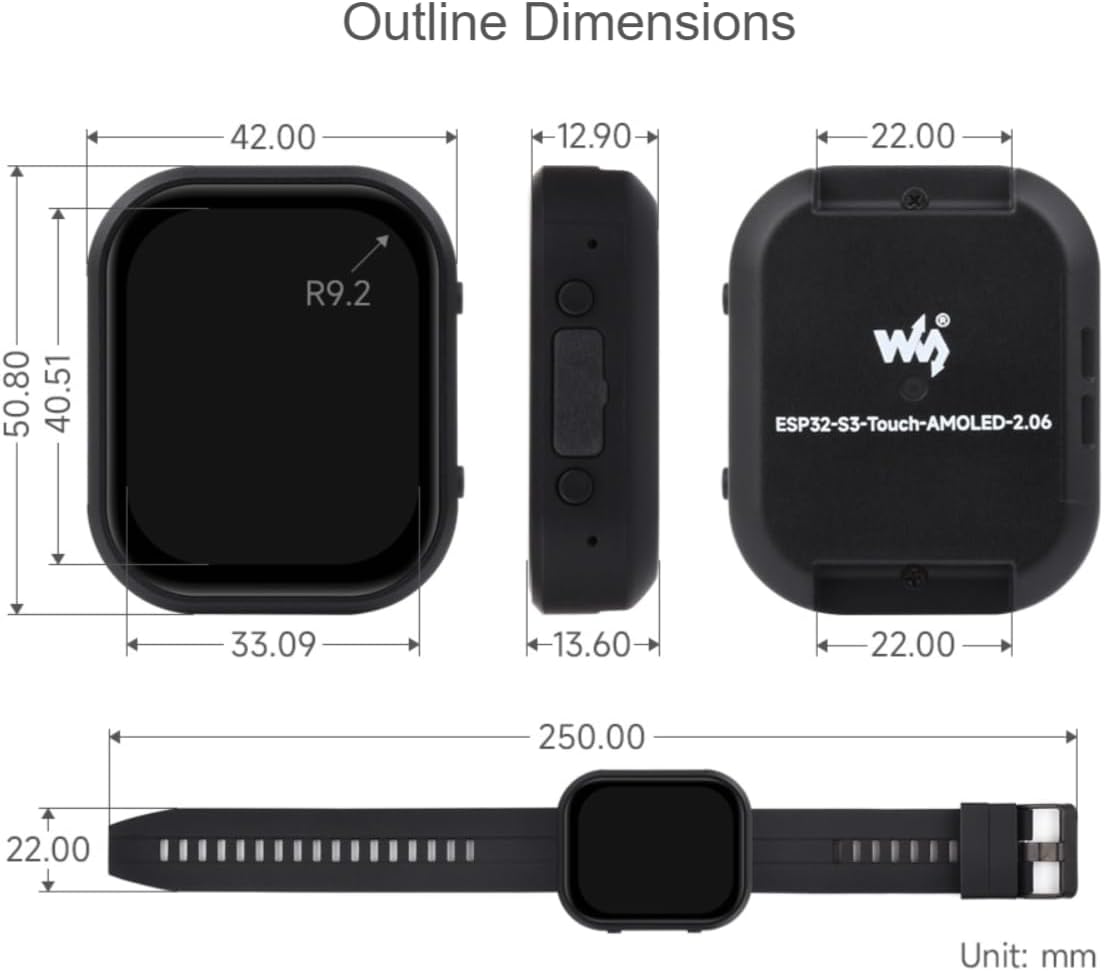

| Item Dimensions D x W x H | 0.53"D x 1.65"W x 2"H |
| Specific Uses For Product | Multimedia |
| Display Resolution Maximum | 410 x 502 Pixels |
