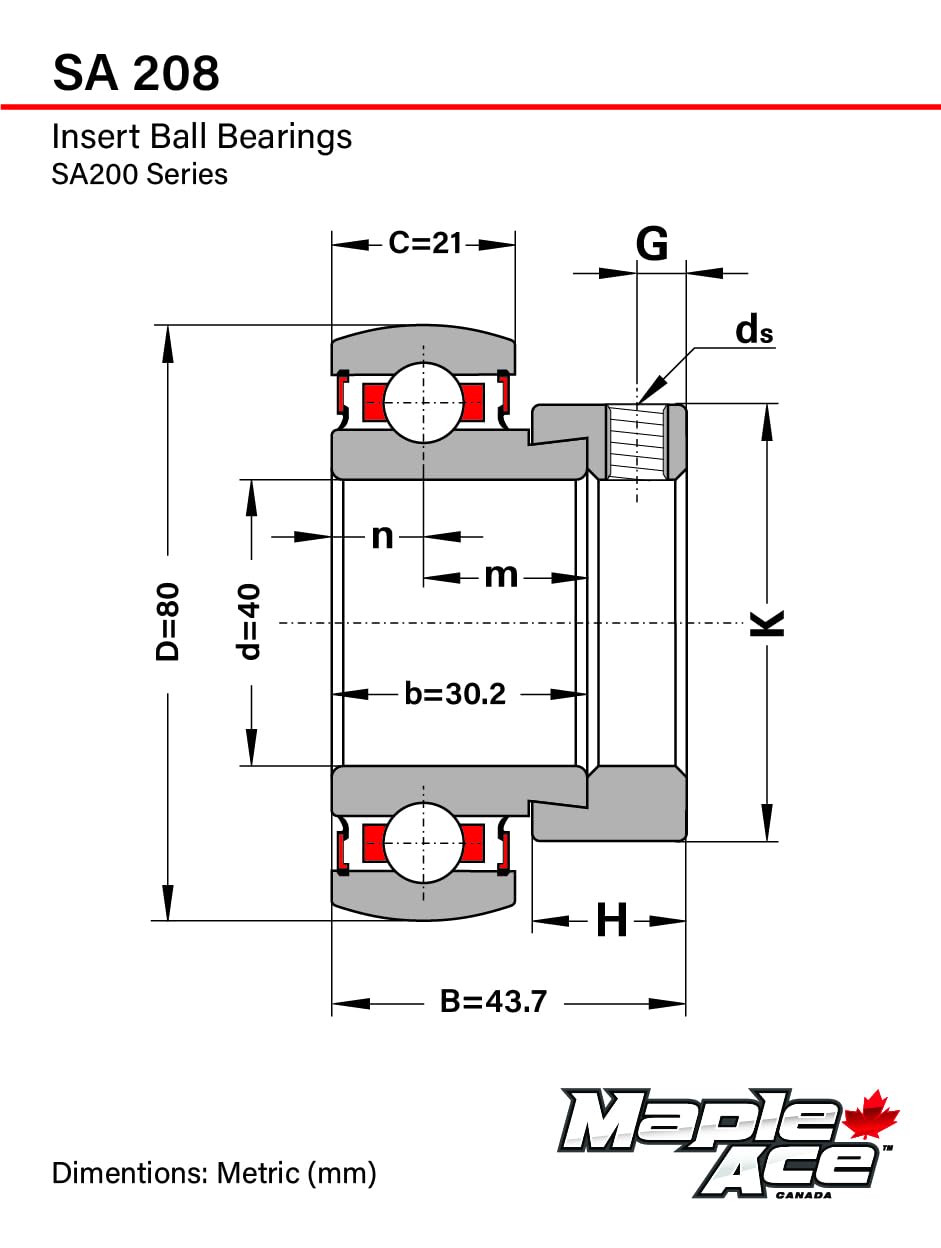

MAPLE ACE SA208 Insert Bearing 40mm Bore, Spherical OD with Eccentric Locking Collar and Lubrication Hole

This INSERT BEARING has a Spherical Surface. Two Metal Shields to Protect the Bearing from Dust or any Possible Contamination. Bearing is Pre-Lubricated with High-Quality Grease, ideal for use in High and Low-temperature settings. Have Oil Hole to Relubricate. Has Eccentric Locking Collar (Self-Locking Collar). - Specification: Item SA208 G, Series SA200, Outer ring type Spherical, Bore Diameter Metric 40.00 mm, Bore Diameter Inch 1.5748 in, Outside Diameter Matric 80.00 mm, Outside Diameter Inch 3.1496 in, Width with Collar Matric 43.70 mm, Width with Collar Inch 1.7205 in, Width Inner Ring Matric 30.20 mm, Width Inner Ring Inch 1.189 in, Width Outer Ring Matric , 21.00 mm, Width Outer Ring Inch 0.8268 in, Dynamic Load Rating Cr 30700 N, Static Load Rating Cor 19000 N, Limiting Speed 4800 r/min, Clearance Normal, Closures Shield on both sides, Sealing type Contact standard, Lubrication Type Grease Shell RL2, Lubrication Temperature -20°C to +160°C, Relubrication feature With, Rolling Element Indicator Ball, Material Gcr15, Locking Type Eccentric Locking Collar, Weight 0.690 KG.

• Exclusively Produced by High Standard Factories
• Ideal for Replacement and OEM Applications
• Specializing in the Exclusive Production of Bearings with High Performance, High Speed, Less Vibration, Low Noise, and Long Life
• DESIGNED FOR HEAVY-DUTY AND COMPATIBLE WITH EXTREME CLIMATE
• 100% SATISFACTION GUARANTEED
